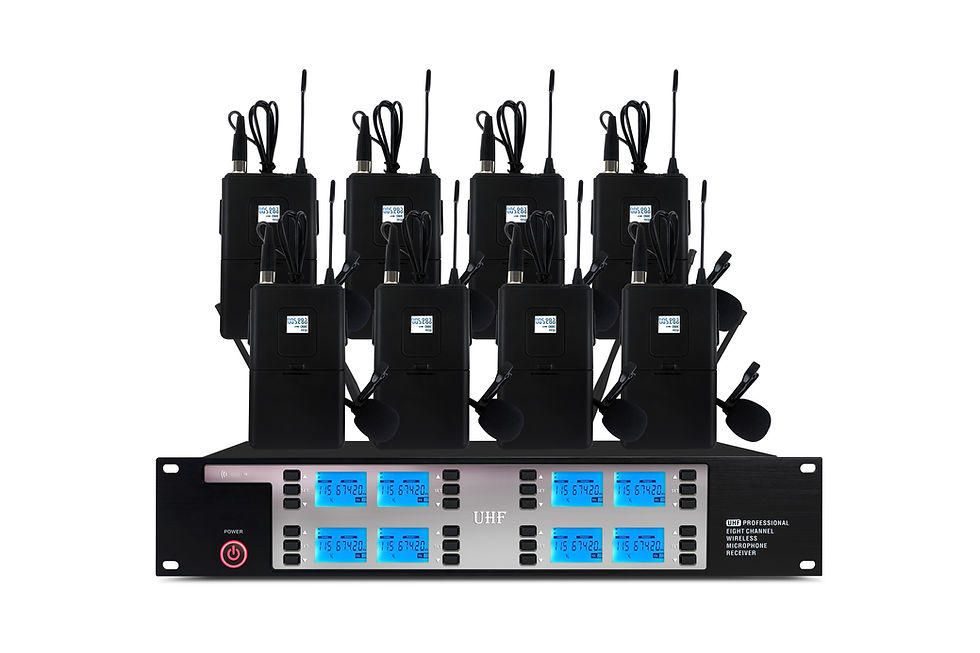

NX-08

NX-08

Frequency bandwidth: 60MHz Modulation method: FM frequency modulation Maximum frequency deviation: ±45KHz Frequency response: 100Hz-300Hz Signal-to-noise ratio (S/N):>50dB Distortion (1kDz):<5% Working temperature: -10℃~55℃ Working distance: 200 meters (under ideal conditions) Power consumption: 8W Static power: 3W

Receiver

  • Spurious suppression: ≥50dB

  • Image suppression: ≥50dB

  • Sensitivity: 5dBuV

  • Audio output level: balanced output (XLR outputjack): 250mV/600Ω

  • Unbalanced output (1/4” output jack): 400mV/3KΩ

  • Working voltage: DC 12V

  • Working current: ≤350mA

  • Chassis size: 420(W)x175(D)X44(H)mm

Transmitter

  • RF Power Output: 30mW max (depending on applicable country codes)

  • Oscillation mode: PLL (digital frequency synthesizer)

  • Transmit frequency stability: <30ppm

  • Dynamic range: ≥50dB(A)

  • Frequency response: 100Hz-300Hz

  • Maximum input sound pressure: 130dBSPL

  • Radiating pickup head: moving coil

  • Power supply: 2 AA alkaline batteries
